DW8 Timing belt cover / water pump bolt size?
#1
Guys, need some help with this if possible!

1.9d DW8 engine, cam timing belt cover (top/rear) shares a bolt with the water pump. Mine is missing and I'm doing the timing belt now.

I can't find a bolt that fits or work out the size. M6 seems too small, M8 too big. Don't have an M7 to hand to try.

Does anyone know what size this bolt is or have one I can buy?
Reply
Thanks given by:
#2
yeah they are a funny size on those like youve discoverd. I dont have a dw8 one lying about though. Peugeot should be able to get bits like that in for pence though still.
On a break from 306oc for personal reasons. If anyone needs or wants me most of you have my number and or facebook messenger
Thanks for the good times guys n gals. I might be back. Who knows.
Reply
Thanks given by: jamesgmg
#3
Looks like it's an M7 x 100.  I think the 18 means the unthreaded portion of the bolt is 18mm.


Reply
Thanks given by: jamesgmg
#4
Awesome, that is so helpful, thank you!
Reply
Thanks given by:
#5
Look a bit short considering they go through the belt cover also?

http://i.ebayimg.com/images/a/(KGrHqEOKj...-l1600.jpg

Mighty306, could I check that's definitely the parts diagram for the DW8?

Just my water pump is very slightly different. As in the guard up the left hand side doesn't extend above the bolt in question. Perhaps trivial!
Reply
Thanks given by:
#6
I don't recall any engine using a water pump bolt to secure a timing cover, the cover bolts on the DW8 are all M6.
need a part number? http://public.servicebox.peugeot.com/ and http://service.citroen.com/ will sort you out.
Reply
Thanks given by:
#7
(03-07-2017, 09:54 AM)welshpug Wrote: I don't recall any engine using a water pump bolt to secure a timing cover, the cover bolts on the DW8 are all M6.

https://www.youtube.com/watch?v=8efU4dzH0NY

skip to 4:55, it's the very bottom bolt he refers to as 11mm.

I'll try and find a better image/video...

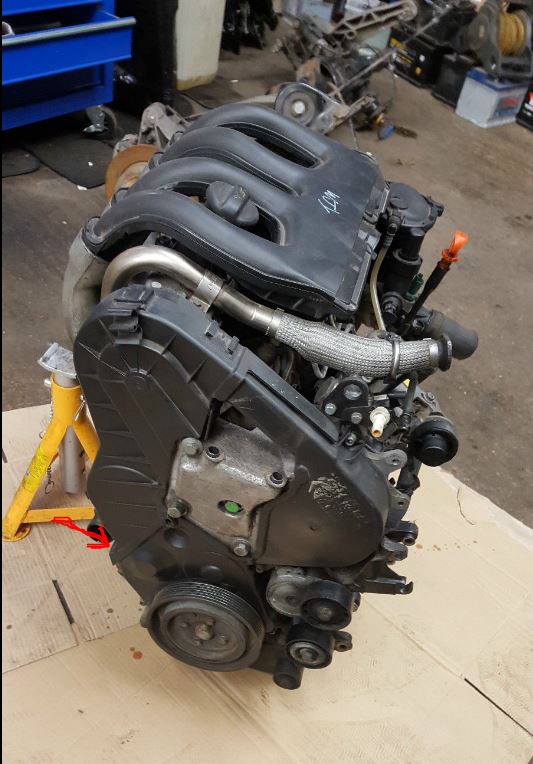

Struggling to find a decent pic, but its the one where I've added the red arrow!

[Image: Capture_zpsqh23a74f.jpg]


Attached Files Image(s)

Reply
Thanks given by:
#8
(03-07-2017, 09:27 AM)jamesgmg Wrote: Look a bit short considering they go through the belt cover also?

http://i.ebayimg.com/images/a/(KGrHqEOKj...-l1600.jpg

Mighty306, could I check that's definitely the parts diagram for the DW8?

Just my water pump is very slightly different. As in the guard up the left hand side doesn't extend above the bolt in question. Perhaps trivial!

I had selected DW8 from Servicebox but I think the only way to 100% guarantee you get the right schematic is to use you reg no or VIN no.

It being M7 seemed to fit in with what you said in your OP about M6 being too small and M8 being too big, but Welshpug seems to suggest they should all be M6 and he knows his stuff.

Haven't watched the vid but guess he's referring to an 11mm spanner.
Reply
Thanks given by:
#9
Thanks Mighty306, I just got access to service box and put my VIN in, same parts diagram as you posted.
Reply
Thanks given by:
#10
Genuine screw arrived, correct thread, but not long enough. After going through cover and pump, there is no thread left. Weird!
Reply
Thanks given by:
#11
Well that's frustrating! Hope you find a solution soon.
Reply
Thanks given by:
#12
btw, the "18" in the part number is length in mm.

I've order some M7 25mm and 30mm off ebay. Should do the trick.

Often the manufacturers bolts/screws come with an integrated washer that can't be removed. Never found another source of these types of fittings. Anyone know what to search for out of interest?
Reply
Thanks given by:
#13
Ah, yes, sorry, I obviously didn't have my brain fully engaged when I responded the other day. M7x100 would mean M7 x 1mm thread (which is probably a standard thread for M7). It's PSA's own weird n wonderful way to list thread sizes. 12x150 would mean M12 x 1.5mm thread.
Reply
Thanks given by:
#14
Ah, yes, sorry, I obviously didn't have my brain fully engaged when I responded the other day. M7x100 would mean M7 x 1mm thread (which is probably a standard thread for M7). It's PSA's own weird n wonderful way to list thread sizes. 12x150 would mean M12 x 1.5mm thread.

^^^ errr, no idea how I double-posted!

^^^ errr, no idea how I double-posted!
